ActiveMQ Image Guide

Introduction​

ActiveMQ is a popular open-source message middleware developed by the Apache Software Foundation. Implemented in Java, it fully supports the JMS 1.1 and J2EE 1.4 specifications as a JMS Provider. It primarily serves as a message queue for implementing asynchronous communication and decoupling between applications in distributed systems.

By default, network access is turned off to a ECS instance. You can specify rules in a security group that allows access from an IP address range, port, or ECS security group.

You must specify port numbers (for TCP):

  • 22 (ssh)
  • 61616 (ActiveMQ)
  • 8161 (ActiveMQ Web Console)

Alibabacloud Security groups document URL: Alibabacloud Security group

Image environment description​

  • Container image: apache/activemq-classic:5.18.7
  • Data directory: /data/activemq
  • Listening port: 0.0.0.0:61616
  • Management address: http://<public-IP>:8161

View ActiveMQ account information​

Different versions of ActiveMQ may have different account information viewing methods.

View ActiveMQ Broker username and password
cat /opt/bypanel/app/activemq/5.18.7/.env
  • ACTIVEMQ_CONNECTION_USER=admin # ActiveMQ Broker username
  • ACTIVEMQ_CONNECTION_PASSWORD=password # ActiveMQ Broker password
View ActiveMQ Web Console username and password
cat /opt/bypanel/cfg/activemq/5.18.7/jetty-realm.properties
  • Format: Username: Password, Role

Change ActiveMQ Password​

The method to change ActiveMQ password may vary across different versions.

Modify ActiveMQ Broker username and password
sudo vim /opt/bypanel/app/activemq/5.18.7/.env
  • ACTIVEMQ_CONNECTION_USER=admin # ActiveMQ Broker username
  • ACTIVEMQ_CONNECTION_PASSWORD=new password # ActiveMQ Broker password
Modify ActiveMQ Web Console username and password
sudo vim /opt/bypanel/cfg/activemq/5.18.7/jetty-realm.properties
  • Format: Username: Password, Role

Switch ActiveMQ Version​

Default image supports the following versions:

  • apache/activemq-classic:5.18.7, 5.18.7 is the version number
  • apache/activemq-classic:latest, latest is the latest version number 6.1.7

Switch ActiveMQ version steps:

Down ActiveMQ container​

Exec command
sudo bypanel down activemq

Delete Old Version Data​

Exec command
sudo rm -rf /data/activemq

Configure New Version​

Exec command
sudo bypanel configure
e.g.: Execute command process
[root@WeiLiu ~]# sudo bypanel configure

Set language, value range is: [en zh-CN]. please enter the language (default: en):

Set the installation path for bypanel. Please enter the path for bypanel (default: /opt/bypanel):

Set data volume path, please enter the data path (default: /data):

Set timezone, Please enter timezone (default: Asia/Shanghai):

Supported applications: activemq,adminer,anylink,apache,caddy,crproxy,memcached,mongo,mysql,mysql-cron-backup,nacos,nginx,openresty,php53,php54,php55,php56,php70,php71,php72,php73,php74,php80,php81,php82,php83,php84,phpmyadmin,postgresql,rabbitmq,redis,sftpgo,tomcat,zookeeper
Set the startup application, If you add a new application, Please keep the original configuration(e.g., if you add an `zookeeper` application: activemq,zookeeper)
please enter the applications (comma-separated. default: activemq):

Set ActiveMQ version,
value range is: [5.18.7 latest] .
Please enter the version (default: 5.18.7 ): latest
[root@WeiLiu ~]#

Up ActiveMQ Container​

Exec command
sudo bypanel up -d

For management password reference: ActiveMQ account information

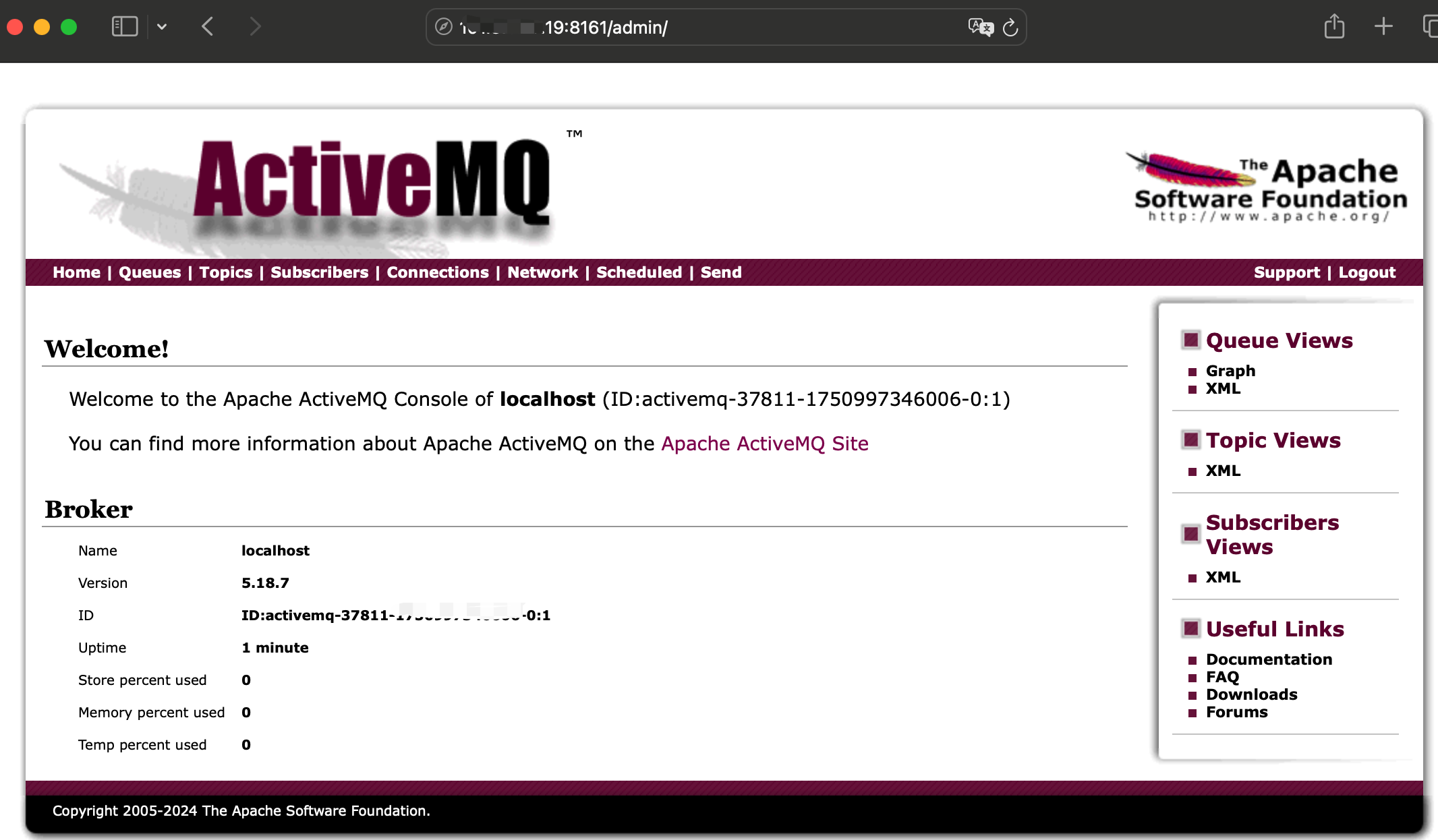

Login ActiveMQ Web Console​

Access http://<public-IP>:8161 in your browser, then enter username admin and password ********

note

Security group port 8161 must be opened

alt activemq_admin_web

ByPanel Documentation​

More document URL: README
